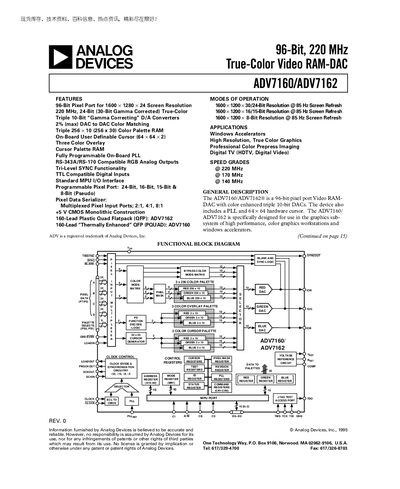

The ADV7160/ADV7162 is a 96-bit pixel port video RAM-DAC with color enhanced triple 10-bit DACs. The device also includes a PLL and 64 × 64 hardware cursor. The ADV7160/ADV7162 is specifically designed for use in the graphics sub-system of high performance, color graphics workstations and windows accelerators.
The ADV7160/ADV7162® is a 96‑bit pixel‑port Video RAM‑DAC that integrates three 10‑bit DACs, on‑board PLL, cursor RAM and programmable pixel ports. It supports up to 1600 × 1280 × 24‑bit true‑color resolution and offers RS‑343A/RS‑170 compatible RGB analog outputs, TTL digital inputs and a variety of multiplexing modes.
Designed for high‑performance graphics workstations, Windows accelerators and digital TV applications, the device provides flexible pixel‑port programming, multiple color overlay palettes and extensive timing control through its MPU and JTAG interfaces.
| Resolution (Each DAC) | 10 Bits |
|---|---|
| Input High Voltage (Digital Inputs) | 2 V |
| Input Low Voltage (Digital Inputs) | 0.8 V |
| Power Supply Voltage (Vaa) | 5 V |
| Current Consumption (ADV7160, 220 MHz) | 475 mA |
| Operating Temperature Range | 0 °C to +70 °C |
The device is rated for temperatures from 0 °C up to +70 °C.
The maximum pixel‑clock rate for 2:1 multiplexing is 110 MHz.
At 220 MHz the ADV7160 draws 475 mA from the 5 V supply.
