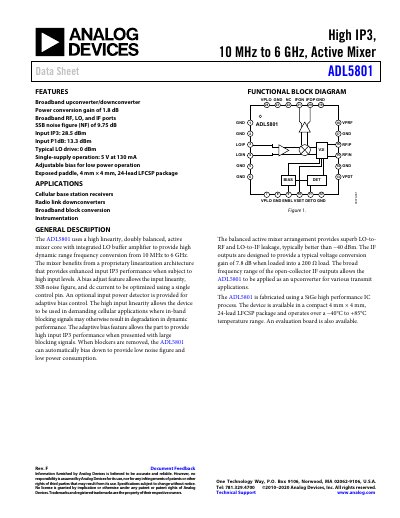

The ADL5801 is a high linearity active mixer with a frequency range of 10 MHz to 6 GHz. It features broadband RF, LO, and IF ports, an input IP3 of 28.5 dBm, an input P1dB of 13.3 dBm, and provides a power conversion gain of 1.8 dB and a SSB noise figure of 9.75 dB. This product is suitable for applications such as cellular base station receivers, radio link downconverters, and broadband block conversion instrumentation.
The ADL5801 is a high linearity, doubly balanced active mixer core with an integrated LO buffer amplifier. It is designed for high dynamic range frequency conversion from 10 MHz to 6 GHz and features a proprietary linearization architecture to enhance input IP3 performance under high input levels. The device includes an adjustable bias feature to optimize input linearity, SSB noise figure, and DC current, and an optional input power detector for adaptive bias control.
| RF Frequency Range | 10 to 6000 MHz |
|---|---|
| Power Conversion Gain | 1.8 dB |
| SSB Noise Figure | 9.75 dB |
| Input IP3 | 28.5 dBm |
| Input P1dB | 13.3 dBm |
| Typical LO Drive | 0 dBm |
| Supply Voltage | 4.75 to 5.25 V |
| Quiescent Current | 130 mA |
| Package | 4 mm × 4 mm, 24-lead LFCSP |
Yes, it includes an integrated LO buffer amplifier.
The typical power conversion gain is 1.8 dB.
Yes, it features adjustable bias for low power operation.
