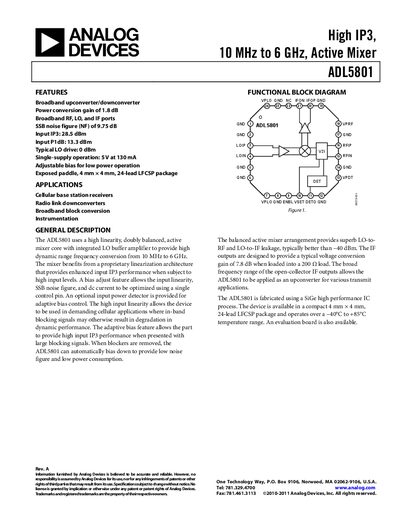

ADL5801 is a high IP3 active mixer with a frequency range of 10 MHz to 6 GHz. It features a broadband upconverter/downconverter, power conversion gain of 1.8 dB, broadband RF, LO, and IF ports, SSB noise figure of 9.75 dB, input IP3 of 28.5 dBm, input P1dB of 13.3 dBm, single-supply operation, and adjustable bias for low power operation.
The ADL5801 active mixer provides a doubly‑balanced architecture with integrated LO buffer, delivering up‑ and down‑conversion from 10 MHz to 6 GHz. It features a bias‑adjust pin for adaptive control of input IP3 and noise figure, and an optional input power detector for automatic biasing.
The device operates from a single 5 V supply at 130 mA, offers a typical power conversion gain of 1.8 dB, and includes an exposed paddle for grounding. A 24‑lead LFCSP package (4 mm × 4 mm) and an evaluation board are available for prototyping.
| RF Frequency Range | 10 MHz – 6000 MHz |
|---|---|
| LO Power Range | -10 dBm to +10 dBm |
| Supply Voltage | 5 V |
| Quiescent Current | 130 mA (typical) |
| Power Conversion Gain (900 MHz) | 1.8 dB |
| SSB Noise Figure (900 MHz) | 9.75 dB |
| Input IP3 (900 MHz) | 28.5 dBm |
| Input 1 dB Compression Point (900 MHz) | 13.3 dBm |
The device operates from a single 5 V supply.
The typical power conversion gain is 1.8 dB at 900 MHz.
The input IP3 is 28.5 dBm at 900 MHz.
The typical quiescent current is 130 mA.
