Start here

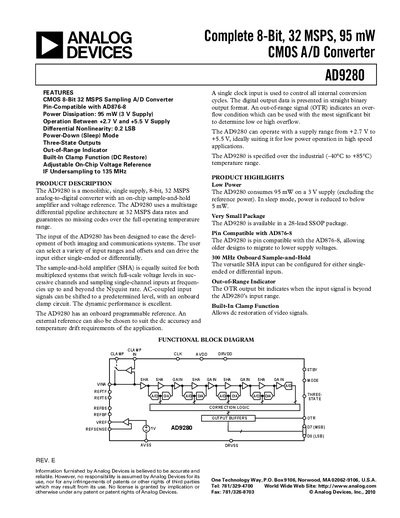

Analog Devices AD9280 Datasheet
The AD9280 is a monolithic, single‑supply, 8‑bit, 32 MSPS analog‑to‑digital converter featuring an on‑chip sample‑and‑hold amplifier, programmable reference, and three‑state digital outputs. It operates from +2.7 V to +5.5 V and consumes only 95 mW at a 3 V supply.
The device is offered in a 28‑lead shrink‑small‑outline package (SSOP) and is pin‑compatible with the AD876‑8, making it suitable for imaging, communications, and instrumentation applications that require low power and high speed.
Analog Devices AD9280 specifications
| Resolution | 8 Bits |
|---|---|
| Conversion Rate | 32 MHz |
| Power Consumption (typical, 3 V) | 95 mW |
| Supply Voltage Range | 2.7 V to 5.5 V |
| Input Voltage Range | 0.5 V to 2.5 V |
| Differential Nonlinearity (DNL) | +0.2 LSB |
| Integral Nonlinearity (INL) | +40 LSB |
| Full‑Power Bandwidth | 300 MHz |
Source: Analog Devices AD9280 Datasheet
All Analog Devices AD9280 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical power consumption of the AD9280 at a 3 V supply?
The AD9280 typically consumes 95 mW at a 3 V supply (110 mW max).
Which package does the AD9280 use?
The AD9280 is available in a 28‑lead shrink‑small‑outline (SSOP) package.
What is the typical power consumption of the AD9280 at a 3 V supply?
The AD9280 consumes about 95 mW typical (up to 110 mW max) at a 3 V supply.
From: ANALOG DEVICES Complete 8-Bit 32 MSPS 95 mW CMOS A/D Converter AD9280 handbook
What package does the AD9280 use?
The AD9280 is offered in a 28‑lead SSOP (RS‑28) shrink small‑outline package.
From: ANALOG DEVICES Complete 8-Bit 32 MSPS 95 mW CMOS A/D Converter AD9280 handbook
What is the resolution of the AD9280?
The AD9280 provides 8‑bit resolution.
How much power does the AD9280 consume in normal mode?
It consumes about 95 mW at a 3 V supply.
