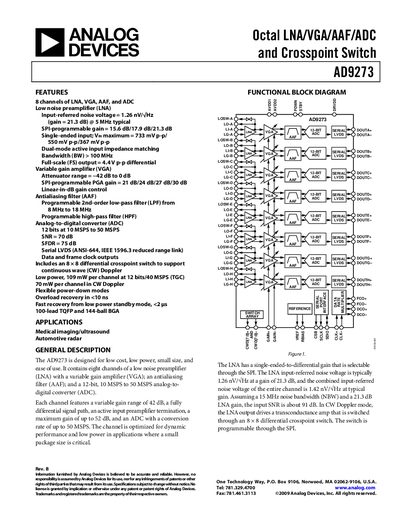

Analog Devices AD9273 Datasheet Rev B
The AD9273 integrates eight channels of low‑noise preamplifier, variable gain amplifier, antialiasing filter and a 12‑bit ADC capable of 10 MSPS to 50 MSPS. It offers SPI‑programmable gain, an 8 × 8 differential crosspoint switch for CW Doppler mode, and a serial LVDS data interface.
Designed for compact, low‑power systems, the device is available in 100‑lead TQFP or 144‑ball BGA packages and operates over an industrial temperature range of –40 °C to +85 °C. Typical power consumption is 109 mW per channel at 40 MSPS.
Analog Devices AD9273 specifications
| Number of channels | 8 |
|---|---|
| Input‑referred noise voltage | 1.26 nV/VHz |
| Sample rate | 10 MSPS to 50 MSPS |
| Power per channel (40 MSPS) | 109 mW |
| Package options | 100‑lead TQFP or 144‑ball BGA |
All Analog Devices AD9273 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range of the AD9273?
The maximum single‑ended input voltage is 733 mV p‑p, 550 mV p‑p, or 367 mV p‑p depending on gain settings.
How much power does each channel consume?
Each channel consumes about 109 mW at a 40 MSPS sample rate.
What is the input‑referred noise voltage of the AD9273?
The AD9273 has an input‑referred noise voltage of 1.2 nV/VHz.
What bandwidth does the AD9273 support?
The device provides a bandwidth greater than 100 MHz.
