The AD9280 is a monolithic, single supply, 8-bit, 32 MSPS analog-to-digital converter with an on-chip sample-and-hold amplifier and voltage reference. The AD9280 uses a multistage differential pipeline architecture at 32 MSPS to achieve high linearity and low power consumption.
The AD9280 is a monolithic, single‑supply, 8‑bit, 32 MSPS analog‑to‑digital converter designed for imaging and communications systems. It offers selectable input ranges, differential or single‑ended operation, an on‑chip sample‑and‑hold, and a programmable voltage reference.

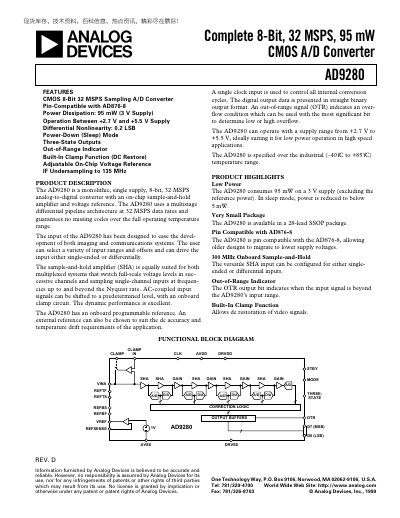

The datasheet provides detailed specifications, pin configuration, electrical characteristics, operational modes, grounding and layout recommendations, as well as package dimensions for the 28‑lead SSOP (RS‑28) device.
| Resolution | 8 Bits |
|---|---|
| Conversion Rate | 32 MHz |
| Typical Power Consumption | 95 mW |
| Power‑Down Consumption | 4 mW |
| Supply Voltage Range | 2.7 V to 5.5 V |
| Differential Nonlinearity | ±0.2 LSB |
| Input Voltage Span | 0.5 V to 2.5 V |
The AD9280 consumes about 95 mW typical (up to 110 mW max) at a 3 V supply.
The AD9280 is offered in a 28‑lead SSOP (RS‑28) shrink small‑outline package.
Pin 13, labeled OTR, is the out‑of‑range indicator.
The device has 28 pins.
