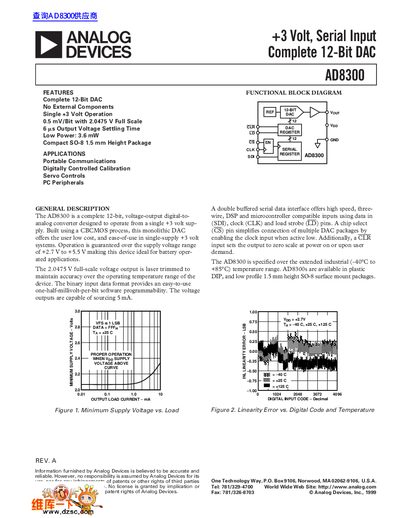

Analog Devices AD8300 12-Bit DAC Handbook
Datasheet 8 pages · 290 KB · EN
The AD8300 is a complete 12‑bit, voltage‑output digital‑to‑analog converter that requires only a single +3 V supply. It offers low power consumption, no external components, and a 0.5 mV/LSB resolution with a 2.0475 V full‑scale output.
The document provides full specifications, pin descriptions, timing diagrams, absolute maximum ratings, ordering information, and application notes. It also includes performance graphs, truth tables, and mechanical dimensions for both SO‑8 and DIP packages.
All Analog Devices AD8300 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the AD8300?
The AD8300 provides a 12‑bit resolution.
