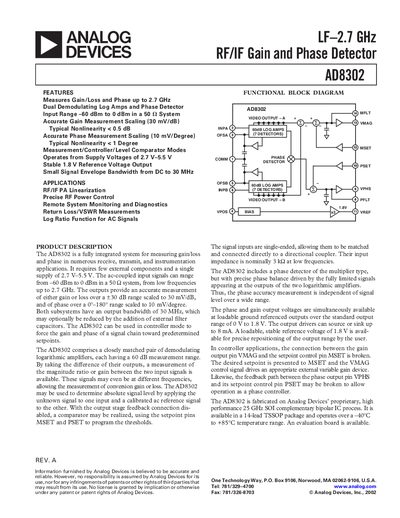

Analog Devices AD8302 Datasheet
The AD8302 is a fully integrated RF/IF gain and phase detector that measures gain/loss and phase up to 2.7 GHz. It operates from a single 2.7 V‑5.5 V supply and provides accurate gain (30 mV/dB) and phase (10 mV/°) scaling with low non‑linearity.
The document includes a functional block diagram, pin configuration, absolute maximum ratings, detailed electrical specifications, ordering information, typical performance curves, package dimensions, and revision history, allowing designers to integrate the device into measurement and control systems.
Analog Devices AD8302 specifications
| Input Frequency Range | 0 Hz – 2.7 GHz |
|---|---|
| Phase Measurement Range | 0° – 180° |
| Output Current Capability | 8 mA |
| Small Signal Envelope Bandwidth | 30 MHz |
| Operating Temperature Range | -40 °C – +85 °C |
Source: Analog Devices AD8302 Datasheet
All Analog Devices AD8302 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the small signal envelope bandwidth of the AD8302?
The device provides a small‑signal envelope bandwidth up to 30 MHz.
What temperature range can the AD8302 operate in?
It operates over a temperature range of –40 °C to +85 °C.
What is the input frequency range of the AD8302?
The AD8302 accepts input signals from 0 Hz up to 2.7 GHz.
From: Analog Devices AD8302 RF/IF Gain and Phase Detector Product Handbook Rev A
What supply voltage does the AD8302 require?
It operates from a single supply voltage between 2.7 V and 5.5 V.
From: Analog Devices AD8302 RF/IF Gain and Phase Detector Product Handbook Rev A
What is the input frequency range of the AD8302?
It can measure signals from DC up to 2.7 GHz.
What supply voltage does the AD8302 require?
The device operates from 2.7 V to 5.5 V.
