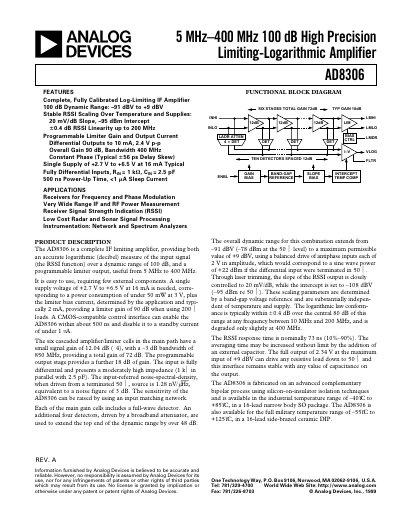

Analog Devices AD8306 Datasheet
The AD8306 is a complete IF limiting‑logarithmic amplifier that provides accurate decibel measurement (RSSI) over a 100 dB dynamic range. It operates from 5 MHz to 400 MHz and can be powered by a single supply of +2.7 V to +6.5 V, drawing about 16 mA quiescent current.
The device features fully differential inputs, programmable limiter gain, and differential outputs up to 2.34 V. It is fabricated in a 16‑lead narrow‑body SO package for industrial temperature range (‑40 °C to +85 °C) and a side‑brazed ceramic DIP for military range (‑55 °C to +125 °C).
Analog Devices AD8306 specifications
| Frequency range | 5 MHz to 400 MHz |
|---|---|
| Dynamic range | 100 dB |
| Supply voltage | +2.7 V to +6.5 V |
| Input resistance | 800 Ω–1200 Ω |
| Input capacitance | 2.5 pF |
Source: Analog Devices AD8306 Datasheet
All Analog Devices AD8306 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the usable frequency range of the AD8306?
The AD8306 operates from 5 MHz to 400 MHz.
What supply voltage does the AD8306 require?
It can be powered from +2.7 V to +6.5 V.
What supply voltage range does the AD8306 require?
The AD8306 operates from a single supply voltage between 2.7 V and 6.5 V.
What is the dynamic range of the AD8306?
It provides a 100 dB dynamic range from –91 dBV to +9 dBV.
