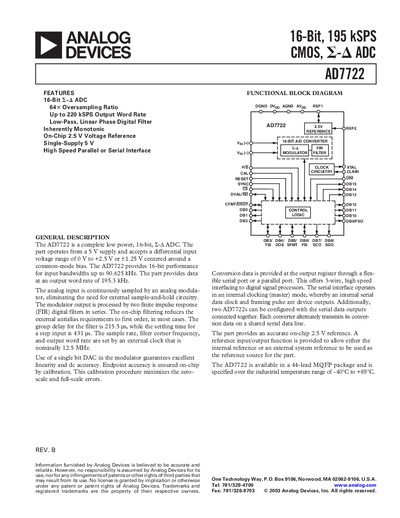

Analog Devices AD7722 Datasheet
The AD7722 is a low‑power, 16‑bit, sigma‑delta ADC that operates from a 5 V supply and supports both bipolar and unipolar input ranges. It delivers up to 195.3 kSPS output word rate with an on‑chip 2.5 V reference and offers parallel or serial data interfaces.
The document lists electrical characteristics, absolute maximum ratings, pin functions, timing diagrams, and ordering information for the 44‑lead MQFP package. It also includes detailed specifications such as input bandwidth, power consumption, and reference voltage performance.
Analog Devices AD7722 specifications
| Resolution | 16 bits |
|---|---|
| Maximum Input Bandwidth | 90.625 kHz |
| Output Word Rate | 195.3 kSPS |
| Power Consumption | 375 mW |
| Supply Voltage | 5 V (±5 %) |
Source: Analog Devices AD7722 Datasheet
All Analog Devices AD7722 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD7722?
The AD7722 can output data at up to 195.3 kSPS.
What reference voltage does the AD7722 provide on‑chip?
The device includes an internal 2.5 V reference.
What is the maximum sampling rate of the AD7722?
The AD7722 can output data at up to 195 kSPS word rate.
What supply voltages does the AD7722 require?
It operates from a single 5 V supply (AVpp and DVpp 5 V ± 5%).
