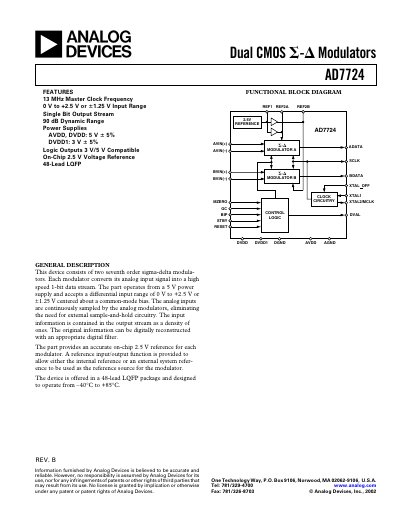

Analog Devices AD7724 Dual Sigma‑Delta Modulator Datasheet
The AD7724 is a dual seventh‑order sigma‑delta modulator that converts analog inputs to a high‑speed 1‑bit data stream. It operates from a 5 V supply, supports both unipolar (0 V to VREF) and bipolar (±VREF/2) input ranges, and includes an on‑chip 2.5 V reference.
The document provides detailed electrical specifications, timing characteristics, pin configurations, and recommended circuit layouts. It also includes performance graphs for signal‑to‑noise ratio, total harmonic distortion, and spurious‑free dynamic range across temperature and frequency ranges.
Analog Devices AD7724 specifications
| Master Clock Frequency | 13 MHz |
|---|---|
| Dynamic Range | 90 dB |
| Power Supply | AVDD/DVDD 5 V ±5% |
| Package | 48‑Lead LQFP |
| Operating Temperature Range | –40 °C to +85 °C |
| Bipolar Input Range | ±VREF2/2 V |
| Unipolar Input Range | 0 to VREF2 V |
| Reference Voltage | 2.5 V on‑chip |
Source: Analog Devices AD7724 Dual Sigma‑Delta Modulator Datasheet
All Analog Devices AD7724 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended master clock frequency for the AD7724?
The device is specified for a master clock frequency of 13 MHz.
From: Analog Devices AD7724 Dual Sigma‑Delta Modulator Datasheet
What input voltage range does the AD7724 support in bipolar mode?
In bipolar mode the input range is ±VREF2/2 volts.
From: Analog Devices AD7724 Dual Sigma‑Delta Modulator Datasheet
What is the input voltage range of the AD7724?
The AD7724 accepts a differential input range of 0 V to +2.5 V or +1.25 V, depending on the mode.
What is the dynamic range of the AD7724?
The device provides a typical dynamic range of 90 dB.
