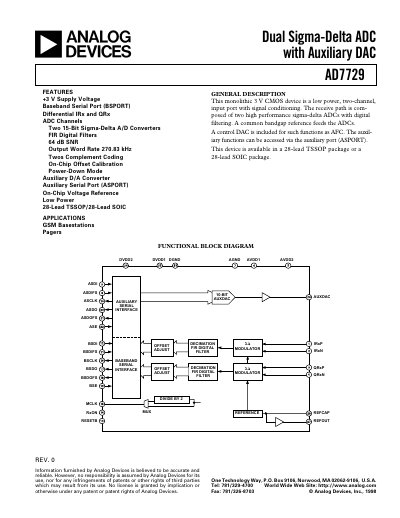

Analog Devices AD7729 Datasheet
The AD7729 is a monolithic 3 V CMOS dual sigma‑delta ADC that provides two 15‑bit channels (I and Q) with on‑chip digital filtering and an auxiliary 10‑bit DAC for functions such as automatic gain control. It is supplied in 28‑lead TSSOP or SOIC packages and is intended for applications like GSM base stations and pagers.
Key specifications include a 13 MSPS input sample rate, 270.83 kHz output word rate, 2.7–3.3 V supply range, and an operating temperature range of –40 °C to +105 °C. Detailed pin configurations, timing diagrams, and register maps are provided for system integration.
Analog Devices AD7729 specifications
| Supply Voltage (AVDD/DVDD) | 2.7–3.3 V |
|---|---|
| Resolution | 15 Bits |
| Output Word Rate | 270.83 kHz |
| Input Sample Rate | 13 MSPS |
| Operating Temperature Range | –40 °C to +105 °C |
Source: Analog Devices AD7729 Datasheet
All Analog Devices AD7729 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the AD7729?
The analog and digital supply pins (AVDD1, AVDD2, DVDD1, DVDD2) accept 2.7 V to 3.3 V.
What is the maximum output word rate?
The device delivers data at up to 270.83 kHz output word rate.
What supply voltage does the AD7729 require?
The device operates from a +3 V supply.
From: Analog Devices AD7729 Dual Sigma-Delta ADC with Auxiliary DAC Handbook
What is the output word rate of the AD7729?
The AD7729 provides an output word rate of 270.83 kHz.
From: Analog Devices AD7729 Dual Sigma-Delta ADC with Auxiliary DAC Handbook
