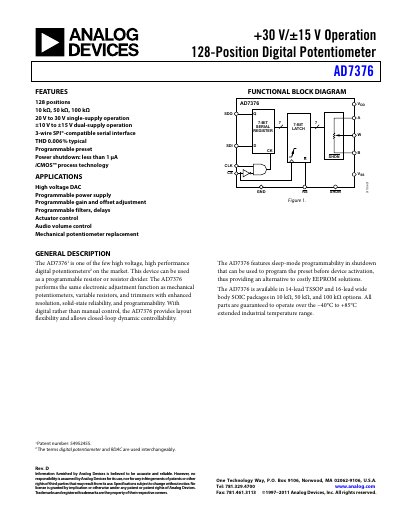

Analog Devices AD7376 Digital Potentiometer Datasheet
The AD7376 digital potentiometer from Analog Devices provides 128 programmable positions and supports both single‑supply (20‑30 V) and dual‑supply (±15 V) operation. It offers three resistance options (10 kΩ, 50 kΩ, 100 kΩ) and features a 3‑wire SPI‑compatible serial interface with low THD (0.006 %).
The datasheet includes detailed specifications, pin configurations, timing diagrams, typical performance curves, and application notes such as high‑voltage DACs, programmable power supplies, and audio volume control. Ordering information and mechanical dimensions are also provided.
Analog Devices AD7376 specifications
| Number of positions | 128 |
|---|---|
| Resistance options | 10 kΩ, 50 kΩ, 100 kΩ |
| Shutdown current | < 1 µA |
| Operating temperature range | -40 °C to +85 °C |
| Maximum VDD rating | -0.3 V to +35 V |
Source: Analog Devices AD7376 Digital Potentiometer Datasheet
All Analog Devices AD7376 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many programmable positions does the AD7376 have?
The AD7376 provides 128 programmable positions.
What is the shutdown current of the AD7376?
The device draws less than 1 µA in shutdown mode.
What is the shutdown current of the AD7376?
The shutdown current is less than 1 pA.
What supply voltage ranges does the AD7376 support?
It supports 5 V to 30 V single‑supply or +5 V to +15 V dual‑supply operation.
