Start here

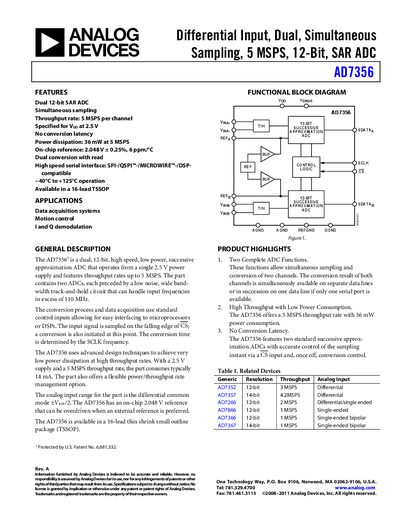

Analog Devices AD7356 Product Handbook Rev A
The AD7356 is a dual, 12‑bit successive‑approximation ADC that operates from a single 2.5 V supply and delivers up to 5 MSPS throughput per channel with low power consumption. It features on‑chip reference, differential inputs, and a high‑speed serial interface compatible with SPI, QSPI, Microwire, and DSP protocols.
The handbook includes detailed specifications, timing diagrams, absolute maximum ratings, pin‑out descriptions, typical performance curves, grounding and layout recommendations, and ordering information for the device and its evaluation board.
Analog Devices AD7356 specifications
| Throughput Rate | 5 MSPS per channel |
|---|---|
| Power Dissipation | 36 mW at 5 MSPS |
| Resolution | 12 Bits |
| On‑chip Reference Voltage | 2.048 V ±0.25 % |
| Operating Temperature Range (Y Grade) | -40 °C to +125 °C |
All Analog Devices AD7356 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum throughput rate of the AD7356?
The AD7356 can sample at up to 5 MSPS per channel.
What temperature range does the AD7356 support?
The device operates from –40 °C up to +125 °C (Y Grade).
What is the maximum sampling rate of the AD7356?
The AD7356 can sample up to 5 MSPS per channel.
How much power does the AD7356 consume at full throughput?
It dissipates 36 mW when operating at 5 MSPS.
