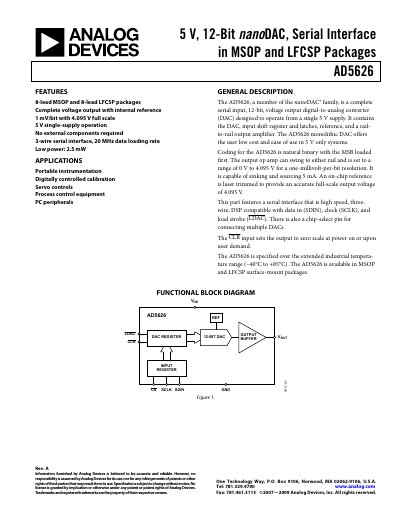

Analog Devices AD5626 12‑Bit nanoDAC Datasheet
The AD5626 nanoDAC from Analog Devices is a complete 12‑bit digital‑to‑analog converter that operates from a single 5 V supply. It integrates the DAC, input shift register, reference, and rail‑to‑rail output amplifier in one package, offering 1 mV/LSB resolution over a 0 V‑4.095 V output range.
The device features a high‑speed 3‑wire serial interface (SDIN, SCLK, LDAC), low power consumption (≈2.5 mW), and can source or sink up to 5 mA. It is supplied in 8‑lead MSOP and LFCSP packages and is specified for –40 °C to +85 °C operation.
Analog Devices AD5626 specifications
| Resolution | 12 Bits |
|---|---|
| Output Current Capability | ±5 mA |
| Logic Input Low Voltage (VIL) | 0.8 V |
| Logic Input High Voltage (VIH) | 2.4 V |
All Analog Devices AD5626 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the AD5626 require?
The AD5626 operates from a single 5 V supply.
What is the resolution of the AD5626?
It provides a 12‑bit resolution.
What supply voltage does the AD5626 require?
The AD5626 is designed to operate from a single 5 V supply, and it can also be used with 12 V or 15 V supplies as noted in the document.
How many pins are in the AD5626 packages?
The device is offered in 8‑lead MSOP and 8‑lead LFCSP surface‑mount packages.
