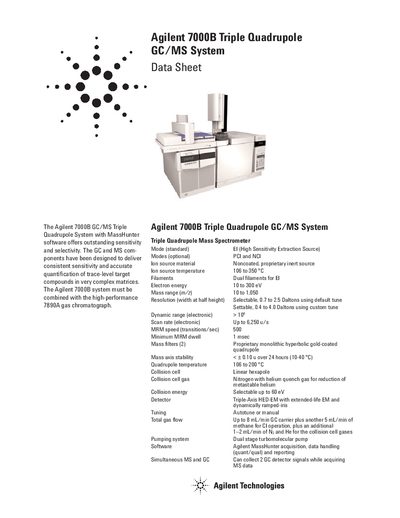

Agilent 7000B Triple Quadrupole GC/MS System Data Sheet is a high-performance gas chromatography mass spectrometry (GC/MS) instrument with outstanding sensitivity and selectivity. The system consists of a 7000B GC/MS triple quadrupole mass spectrometer and MassHunter software. The GC and MS components have been designed to deliver consistent sensitivity and accurate quantification of trace-level target compounds in very complex matrices.
The Agilent 7000B Triple Quadrupole GC/MS System with MassHunter software is designed to deliver consistent sensitivity and accurate quantification of trace-level target compounds in complex matrices. It features a proprietary inert ion source and dual filaments for EI mode, with optional PCI and NCI modes. The system requires combination with the high-performance Agilent 7890A gas chromatograph for full operation.
Key specifications include a mass range of 10 to 1,050 m/z, a dynamic range greater than 10^9, and an MRM speed of 500 transitions per second. The system utilizes a Triple-Axis HED-EM detector and a linear hexapole collision cell. Performance metrics such as Instrument Detection Limits (IDL) are provided for various modes, including EI MRM, PCI MRM, and NCI SIM.
| Mass range (m/z) | 10 to 1,050 |
|---|---|
| Dynamic range (electronic) | > 10^9 |
| MRM speed (transitions/sec) | 500 |
| Minimum MRM dwell | 1 msec |
| Mass axis stability | <+ 0.10 u over 24 hours |
| Collision energy | Selectable up to 60 eV |
| Oven temperature range | Ambient + 4 to 450 °C |
| Triple Quad MS Dimensions | 35 cm (w) x 86 cm (d) x 47 cm (h) |
| Weight | 59 kg |
The Agilent 7000B system must be combined with the high-performance 7890A gas chromatograph.
The EI MRM IDL is 12 fg or less of octafluoronaphthalene (OFN).
The system offers standard EI (High Sensitivity Extraction Source) and optional PCI and NCI modes.
