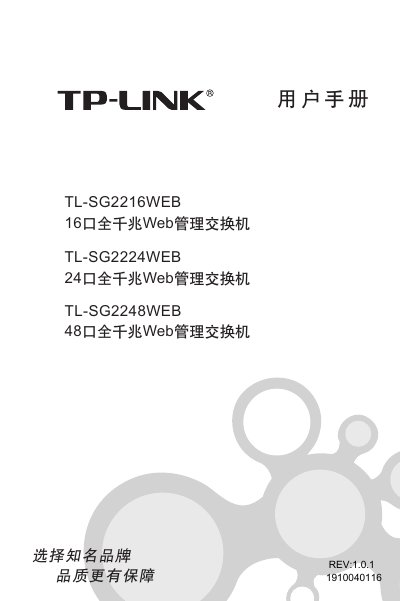

TP-Link TL-SG2216WEB / TL-SG2224WEB / TL-SG2248WEB User Manual
This manual provides an overview of the TL‑SG2216WEB/TL‑SG2224WEB/TL‑SG2248WEB series, including key features, hardware specifications, and supported standards. It explains the physical layout, port configuration, and optional SFP modules for each model.
Installation steps, system configuration, VLAN and trunk setup, priority management, and web‑based management are covered in detail. Appendices contain RJ45 pin details, factory default settings, model‑specific differences, and full technical specifications. This manual is written in Chinese.
TP-Link SG2248WEB specifications
| RJ45 ports | 16 / 24 / 48 10/100/1000Mbps ports |
|---|---|
| Power consumption (max) | 35W (2216), 45W (2224), 100W (2248) |
| Dimensions (L×W×H) | 440mm×260mm×44mm (2216/2224), 440mm×348mm×44mm (2248) |
| Operating temperature | 0 °C ~ 40 °C |
| Power input | AC 100‑240V 50‑60Hz |
Source: TP-Link TL-SG2216WEB / TL-SG2224WEB / TL-SG2248WEB User Manual
All TP-Link SG2248WEB documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the default IP address of the switch?
The default IP address is 192.168.0.1.
From: TP-Link TL-SG2216WEB / TL-SG2224WEB / TL-SG2248WEB User Manual
Where can I find the factory default settings?
Factory default settings are listed in Appendix B of the manual.
From: TP-Link TL-SG2216WEB / TL-SG2224WEB / TL-SG2248WEB User Manual
