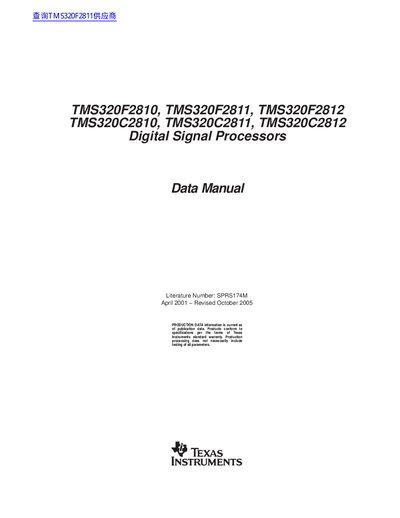

This data manual describes the features and usage of TMS320F2810, TMS320F2811, TMS320F2812 and TMS320C2810, TMS320C2811, TMS320C2812 Digital Signal Processors.
This data manual covers the TMS320F2810, TMS320F2811, TMS320F2812, TMS320C2810, TMS320C2811 and TMS320C2812 digital signal processors. It includes a feature overview, device description, pin and terminal assignments for the GHH, PGF and PBK packages, and detailed signal descriptions.
The document also contains functional overviews such as memory maps, peripheral blocks, low‑power modes, and timing specifications. Electrical characteristics, absolute maximum ratings, recommended operating conditions, and mechanical drawings for the PBK and PGF packages are provided, along with revision history and copyright information.
| Literature Number | SPRS174M |
|---|---|
| Package (PBK) | S‑PQFP‑G128 PLASTIC QUAD FLATPACK |
| Package (PGF) | S‑PQFP‑G176 PLASTIC QUAD FLATPACK |
| Revision Date | Revised October 2005 |
The literature number is SPRS174M.
The manual was revised in October 2005.
