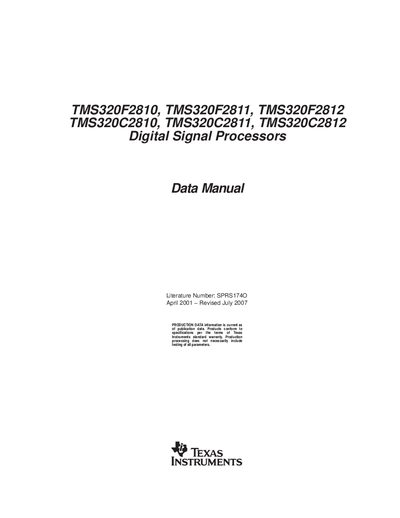

This document is the data manual for TMS320F2810, TMS320F2811, TMS320F2812, TMS320C2810, TMS320C2811, TMS320C2812 digital signal processors. The manual provides technical specifications, features, and application scenarios of the products.
This data manual (Literature Number: SPRS1740) covers the TMS320F2810, TMS320F2811, TMS320F2812, TMS320C2810, TMS320C2811 and TMS320C2812 DSP families. It includes device descriptions, pin and signal assignments, memory maps, functional overviews, peripheral block diagrams, and detailed timing specifications.
The document also contains mechanical data for the BGA and LQFP packages, tables of electrical characteristics, and TI's standard warranty and usage notices. It is intended for designers and engineers who need detailed electrical and mechanical information for these processors.
It was originally published in April 2001 and revised in July 2007.
