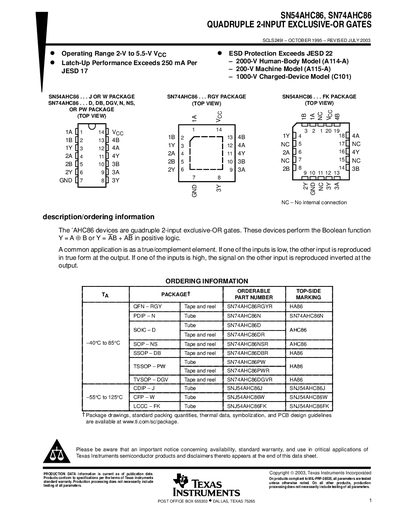

SN54AHC86, SN74AHC86 are quadruple 2-input exclusive-OR gates introduced by Texas Instruments. These devices operate in a range of 2-V to 5.5-V VCC, can withstand 250 mA current, and exceed JESD 22 ESD protection performance standards. These standards include 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), and 1000-V Charged-Device Model (C101).
The SN54AHC86 and SN74AHC86 are quadruple 2‑input exclusive‑OR (XOR) gates that implement the Boolean function Y = A⊕B. They are commonly used as true/complement elements, reproducing the opposite logic level on the output when one input is high.
The document provides detailed electrical characteristics, recommended operating conditions, package thermal data, mechanical dimensions, and ordering information for multiple package types (PDIP, SOIC, QFN, etc.). It also includes an important notice on product warranties and usage restrictions.
| Storage temperature range | 65 °C to 150 °C |
|---|
It implements a 2‑input exclusive‑OR gate, producing Y = A⊕B in positive logic.
The devices can be stored from 65 °C up to 150 °C.
