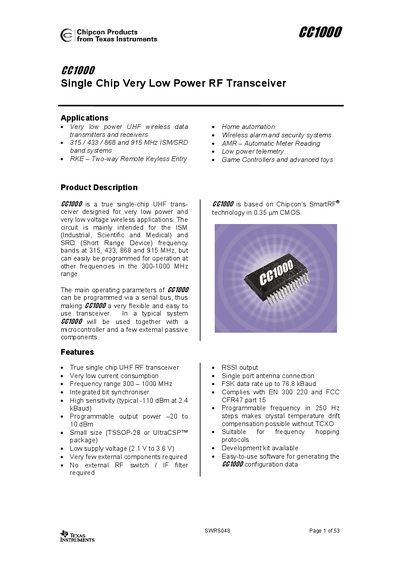

CC1000 is a true single-chip UHF transceiver designed for very low power and very low voltage wireless applications.
The CC1000 is a true single‑chip UHF RF transceiver designed for very low power and low voltage wireless applications. It operates in the ISM/SRD bands (315, 433, 868, 915 MHz) and can be programmed for other frequencies between 300 MHz and 1000 MHz. Typical applications include remote keyless entry, home automation, low‑power telemetry, and wireless alarm systems.
Key specifications include a supply voltage of 2.1 V‑3.6 V, programmable output power from –20 dBm to +10 dBm (433 MHz), receiver sensitivity down to –110 dBm, and data rates up to 76.8 kBaud. The device is offered in TSSOP‑28 or UltraCSP™ packages and requires few external components. Pin assignments, circuit diagrams, and configuration software details are provided throughout the document.
