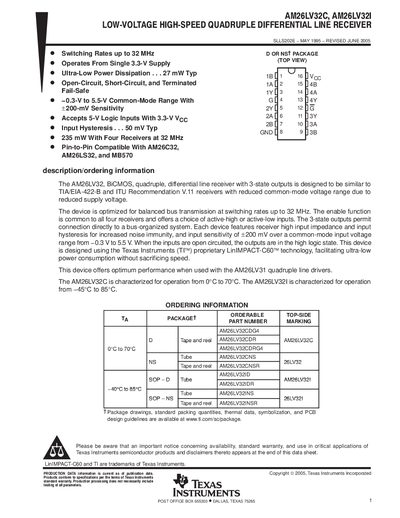

Texas Instruments AM26LV32C/AM26LV32I Low-Voltage High-Speed Quadruple Differential Line Receiver Datasheet
The AM26LV32C and AM26LV32I are BICMOS quadruple differential line receivers with 3‑state outputs, designed for 3.3 V operation and switching rates up to 32 MHz. They feature ultra‑low power dissipation (27 mW typ.) and a common‑mode range of –0.3 V to 5.5 V. The devices are pin‑compatible with the AM26C32, AM26LS32, and MB570 families.
The datasheet provides ordering information, electrical characteristics, recommended operating conditions, parameter measurement methods, and application notes on fail‑safe behavior and board layout. An important notice at the end outlines warranty, liability, and usage restrictions.
Texas Instruments AM26LV32C specifications
| Supply voltage (VCC) | 3 V – 3.6 V |
|---|---|
| High‑level input voltage (VIH) | 2 V |
| Low‑level input voltage (VIL) | 0.8 V |
| Common‑mode input range | -0.3 V to 5.5 V |
| Differential input voltage (VIP) | +5.8 V |
| High‑level output current | -5 mA |
| Low‑level output current | 5 mA |
| Power dissipation (typical) | 27 mW |
| Operating temperature (C) – AM26LV32C | 0 °C to 70 °C |
| Operating temperature (C) – AM26LV32I | -45 °C to 85 °C |
All Texas Instruments AM26LV32C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What temperature range can the AM26LV32C operate in?
The AM26LV32C is specified for operation from 0 °C to 70 °C.
What is the typical supply voltage for the device?
The device is intended to run from a single 3.3 V supply, with a recommended range of 3 V to 3.6 V.
What is the common‑mode input voltage range of the AM26LV32C?
The device operates with a common‑mode input voltage from –0.3 V to 5.5 V.
What temperature range is the AM26LV32C specified for?
The AM26LV32C is characterized for operation from 0 °C to 70 °C.
