The AM26LV32 is a low-voltage, high-performance differential line receiver from TI that provides up to 32MHz switching rates and operates from a single 3.3V supply. It features high input impedance and input hysteresis for increased noise immunity, and input sensitivity of ±200mV over a common-mode input voltage range from −0.3V to 5.5V.
The AM26LV32C is a low‑voltage, high‑speed quadruple differential line receiver with 3‑state outputs, designed for balanced bus transmission up to 32 MHz. It features ultra‑low power dissipation, input hysteresis for noise immunity, and a common‑mode range of –0.3 V to 5.5 V.

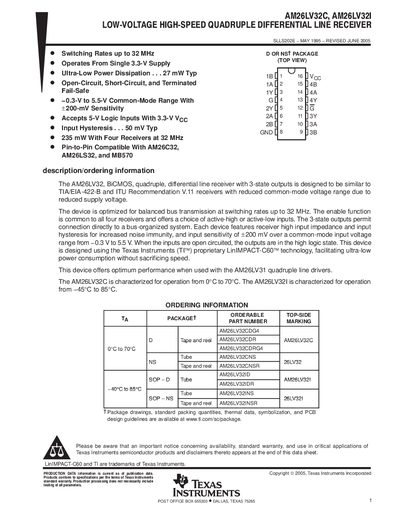

The data sheet lists absolute‑maximum ratings, recommended operating conditions, switching characteristics, mechanical dimensions, and application notes such as fail‑safe behavior for open, terminated, or shorted inputs. Package options include D‑package, NS‑package, and SOP variants, with detailed pin‑to‑pin compatibility information.
| Supply voltage (VCC) | 3.0 V – 3.6 V |
|---|---|
| Common‑mode input voltage range | -0.3 V to 5.5 V |
| Input sensitivity | +200 mV |
| Input hysteresis | 50 mV (typ) |
| Power dissipation (single receiver, 32 MHz) | 27 mW typ |
| Propagation delay (low‑to‑high) | 8 ns – 16 ns |
The device operates with a common‑mode input voltage from –0.3 V to 5.5 V.
The AM26LV32C is characterized for operation from 0 °C to 70 °C.
