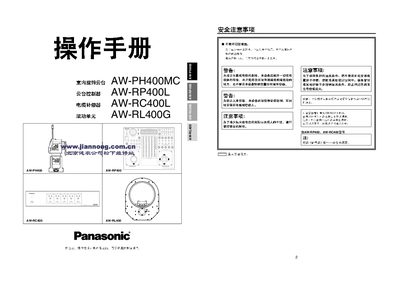

This document describes the features and characteristics of products such as AW-PH400, AW-RC400, AW-RP400, AW-RL400.
The Panasonic document covers the AW-PH400 indoor pan-tilt unit, the AW-RP400 pan-tilt controller, the AW-RC400 cable compensator, and the AW-RL400 rolling unit. Its sections cover product introduction, parts and functions, installation, menu settings, operation, system-configuration examples, replacement of consumables, and specifications.
For the AW-PH400, the text describes 400-degree horizontal rotation, a maximum speed of 90 degrees per second, support for cameras and lenses totaling 8 kg, and preset storage for as many as 50 shooting positions. The installation sections include camera, cable, switch, and pan-tilt mounting instructions and request that installation be handled by a dealer. This manual is written in Chinese.
| Horizontal rotation range | 400 degrees |
|---|---|
| Maximum rotation speed | 90 degrees per second |
| Supported equipment weight | 8 kg |
| Preset shooting positions | Up to 50 |
| DC 12 V OUT maximum current | 2 A |
| Operating humidity | Below 90% |
| Maximum video cable extension with AW-RC400 | 1,000 m |
The manual lists cameras and lenses, with a maximum total weight of 8 kg.
The AW-PH400 can register settings for up to 50 shooting positions as preset data.
The rotation speed drops to approximately one-third.
