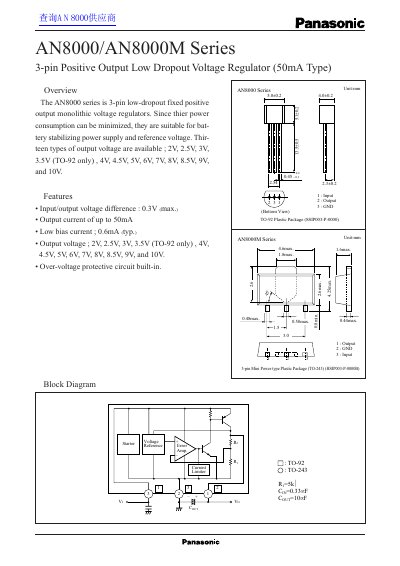

The AN8000 series is a 3-pin low-dropout fixed positive output monolithic voltage regulator. Since thier power consumption can be minimized, they are suitable for bat- tery stabilizing power supply and reference voltage. Thir- teen types of output voltage are available ; 2V, 2.5V, 3V, 3.5V (TO-92 only) , 4V, 4.5V, 5V, 6V, 7V, 8V, 8.5V, 9V, and 10V.
The AN8000 series consists of 3-pin low-dropout fixed positive output monolithic voltage regulators designed to minimize power consumption. These devices are suitable for battery stabilizing power supplies and reference voltage applications. The series offers thirteen types of output voltages ranging from 2V to 10V.
| Output current | up to 50mA |
|---|---|
| Bias current | 0.6mA (typ.) |
| Input/output voltage difference | 0.3V max. |
| Operating ambient temperature | -30 to +80 °C |
| Supply voltage | 20 V |
| Power dissipation | 650 mW |
| Package types | TO-92, TO-243 |
The regulators can provide an output current of up to 50mA.
The maximum input/output voltage difference is 0.3V.
The typical bias current is 0.6mA.
