Key facts
- Brand
- Linear Technology
- Model
- LTC6702
- Category
- Other Electronics
- Industry
- Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-05
Start here

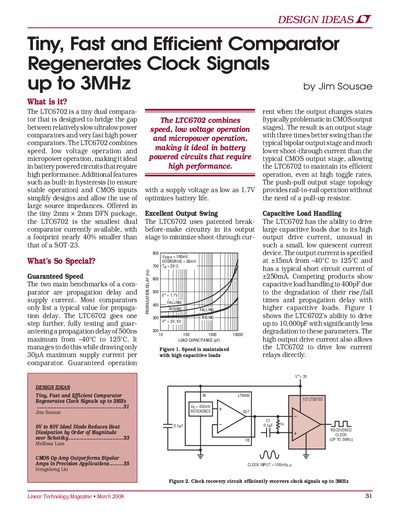

linear DESIGN FEATURES LTMag-V18N01-09-LTC6702-Sousae service manual
The document introduces the LTC6702 as a tiny, fast, and efficient dual comparator designed to bridge the gap between slow ultralow power comparators and very fast high power ones. It features built-in hysteresis and CMOS inputs, making it ideal for battery-powered applications requiring high performance in a 2mm x 2mm DFN package.
Read onlineLinear Technology LTC6702 specifications
| Maximum Propagation Delay | 500 ns |
|---|---|
| Typical Toggle Frequency | 3.2 MHz |
| Supply Current per Comparator | ≈30 µA |
| Input Offset Voltage (typ) | 3.5 mV |
| Output Drive Capability | 15 mA source/sink |
All Linear Technology LTC6702 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum propagation delay of the LTC6702?
The device guarantees a propagation delay of 500ns maximum from -40°C to 125°C.
From: linear DESIGN FEATURES LTMag-V18N01-09-LTC6702-Sousae service manual
What is the minimum supply voltage for operation?
The LTC6702 operates with a supply voltage as low as 1.7V.
From: linear DESIGN FEATURES LTMag-V18N01-09-LTC6702-Sousae service manual
What is the maximum propagation delay of the LTC6702?
The device has a maximum propagation delay of 500 ns.
Which package options are available for the LTC6702?
It is offered in an 8‑lead SOT‑23 package and a 2 mm × 2 mm plastic DFN package.
