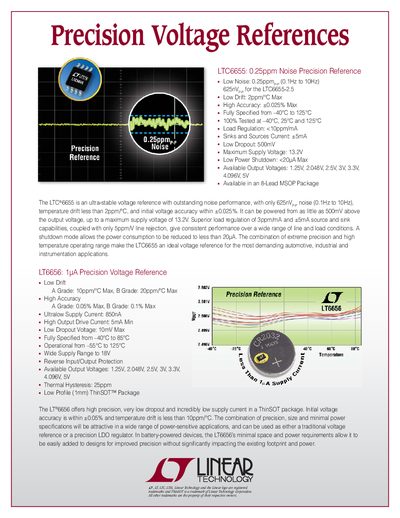

The LTC6655 is a linear voltage reference from Linear Technology with outstanding noise performance, low temperature drift, and wide supply range. It is an ideal choice for demanding automotive, industrial, and instrumentation applications.
The LTC6655 is an ultra-stable voltage reference designed with outstanding noise performance, offering only 625nV of noise from 0.1Hz to 10Hz. It features a maximum temperature drift of 2ppm/°C and initial voltage accuracy within +0.025%. The device can be powered from as little as 500mV above the output voltage, up to a maximum supply voltage of 13.2V.
| Noise (0.1Hz to 10Hz) | 625nV |
|---|---|
| Temperature Drift (Max) | 2ppm/°C |
| Initial Voltage Accuracy | +0.025% |
| Maximum Supply Voltage | 13.2V |
| Load Regulation | <10ppm/mA |
| Source/Sink Current | +5mA |
| Low Dropout Voltage | 500mV |
The device has only 625nV of noise from 0.1Hz to 10Hz.
The LTC6655 has a maximum temperature drift of less than 2ppm/°C.
Available output voltages include 1.25V, 2.048V, 2.5V, 3V, 3.3V, 4.096V, and 5V.
