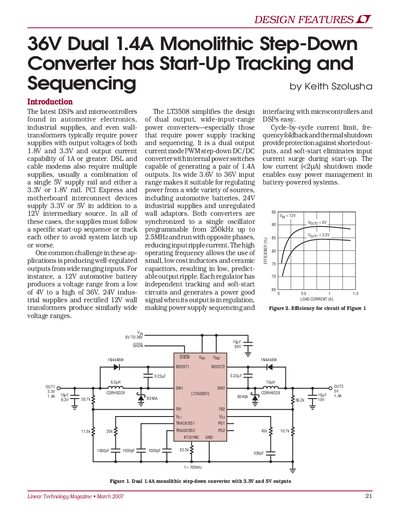

linear DESIGN FEATURES LTMag-V17N01-06-LT3508-Szolusha service manual
The LT3508 is a dual output current mode PWM step-down DC/DC converter capable of generating two 1.4A outputs from a wide input range of 3.6V to 36V. It is designed for applications requiring power supply tracking and sequencing, such as automotive electronics and DSL/cable modems.
Read onlineAll Linear Technology LT3508 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum input voltage range for the LT3508?
The converter operates with a wide input range from 3.6V to 36V.
From: linear DESIGN FEATURES LTMag-V17N01-06-LT3508-Szolusha service manual
What is the maximum output current capability per channel?
Each internal power switch can generate an output of 1.4A.
From: linear DESIGN FEATURES LTMag-V17N01-06-LT3508-Szolusha service manual
What is the input voltage range of the LT3508?
The LT3508 operates with an input voltage from 3.7 V up to 36 V.
From: Linear Technology LT3508 Dual Channel 1.4A Step-Down Switching Regulator Datasheet
How can the switching frequency be programmed?
By connecting a resistor from the RT/SYNC pin to ground or by driving the pin with a logic‑level SYNC signal; resistor values are listed in a table.
From: Linear Technology LT3508 Dual Channel 1.4A Step-Down Switching Regulator Datasheet
