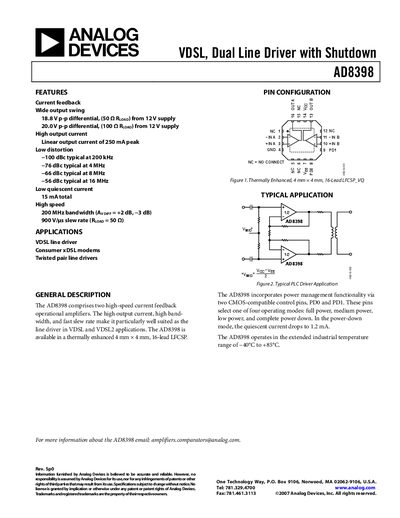

ANALOG DEVICES AD8398 English products handbook Rev Sp0
The AD8398 is a high‑speed current‑feedback operational amplifier designed for VDSL and VDSL2 line‑driver applications. It offers high output current, wide bandwidth, and fast slew rate, making it suitable for consumer xDSL modems and twisted‑pair line drivers.
Key specifications include a linear output current of 250 mA peak, up to 20 V p‑p differential output swing, 200 MHz bandwidth, 900 V/µs slew rate, and operation over an industrial temperature range of –40 °C to +85 °C. The device is supplied in a thermally enhanced 4 mm × 4 mm, 16‑lead LFCSP package and features power‑management pins for selectable power modes.
Analog Devices SP0 specifications
| Output swing (50 Ω load) | 18.8 V p‑p differential from 12 V supply |
|---|---|
| Output swing (100 Ω load) | 20.0 V p‑p differential from 12 V supply |
| Peak output current | 250 mA |
| Quiescent current (normal mode) | 15 mA total |
| Quiescent current (power‑down mode) | 1.2 mA |
| Bandwidth | 200 MHz (≈+2 dB, –3 dB) |
| Slew rate | 900 V/µs |
| Operating temperature range | –40 °C to +85 °C |
| Package | Thermally enhanced 4 mm × 4 mm, 16‑lead LFCSP |
Source: ANALOG DEVICES AD8398 English products handbook Rev Sp0
