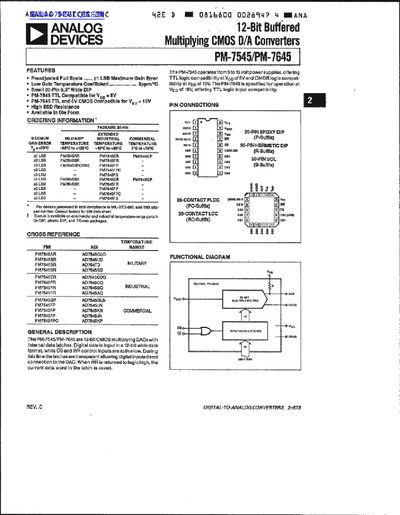

Analog Devices PM-7545/PM-7645 Datasheet
Datasheet 11 pages · 346 KB · EN
The PM-7545 and PM-7645 are 12‑bit buffered multiplying CMOS digital‑to‑analog converters offered by Analog Devices. They support TTL logic compatibility and operate from low‑voltage supplies up to 15 V.
The devices feature a wide operating temperature range, static accuracy of ±1 LSB, and configurable output capacitance. Detailed electrical characteristics, pin connections, and interfacing guidelines for microprocessors are provided.
Analog Devices PM-7545 specifications
| Resolution | 12‑bit |
|---|---|
| Supply Voltage | Up to 15 V |
| Static Accuracy | ±1 LSB |
| Full‑Scale Gain Error | ±1 LSB |
| Output Capacitance | 7 pF to 150 pF |
| Propagation Delay | Typical values listed in performance table |
All Analog Devices PM-7545 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the PM-7545/PM-7645?
The converters provide a 12‑bit resolution.
What supply voltage range does the PM-7545 support?
It operates from low‑voltage supplies up to 15 V.
What is the resolution of the PM-7545/PM-7645 converters?
They provide a 12‑bit resolution.
What temperature range can the devices operate in?
The devices operate from –55 °C to +126 °C.
