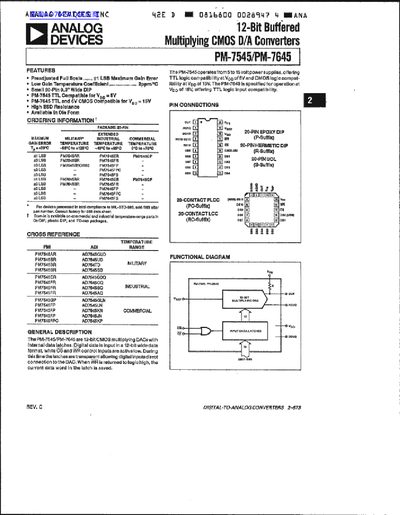

The PM-7545 and PM-7645 are 12‑bit buffered multiplying CMOS D/A converters offering pre‑adjusted full‑scale gain error of ±1 LSB and TTL compatibility. They operate from low‑voltage supplies up to 15 V and are available in a 20‑contact B2‑PIH package.
Electrical characteristics include a temperature range of –55 °C to +126 °C, typical supply currents, and output capacitance that varies from about 7 pF to 150 pF. Pin‑out information and functional diagrams are provided for system integration.
| Resolution | 12‑bit |
|---|---|
| Number of pins | 20‑contact |
| Package type | B2‑PIH |
| Operating temperature range | -55 °C to +126 °C |
| Full‑scale gain error | ±1 LSB |
| Supply voltage range | 5 V to 15 V |
They provide a 12‑bit resolution.
The devices operate from –55 °C to +126 °C.
The device uses a 20‑contact pin configuration.
It is supplied in a B2‑PIH package.
