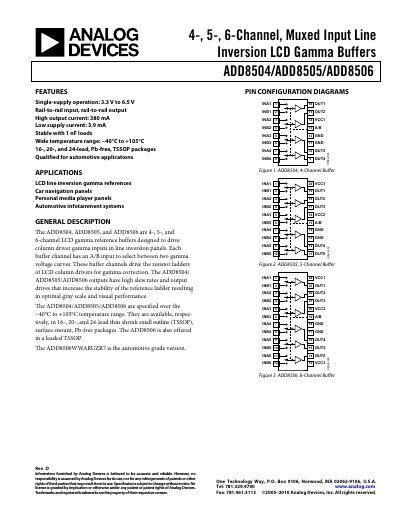

Analog Devices ADD8504/ADD8505/ADD8506 LCD Gamma Buffers Datasheet
The ADD8504, ADD8505, and ADD8506 are 4‑, 5‑, and 6‑channel LCD gamma reference buffers designed for line‑inversion panels. Each channel features an A/B input to select between two gamma voltage curves and drives the resistor ladders of LCD column drivers for gamma correction. The devices operate from a single 3.3 V to 6.5 V supply, provide rail‑to‑rail input and output, and deliver up to 380 mA per channel with high slew rates.
The data sheet includes detailed electrical characteristics, absolute maximum ratings, thermal resistance, ESD performance, pin configuration diagrams, typical performance graphs, and ordering information. An automotive‑grade version (ADD8506WW) is also listed, qualified for automotive applications.
Analog Devices ADD8504 specifications
| Supply Voltage Range | 3.3 V to 6.5 V |
|---|---|
| Output Voltage High (VOH) | 4.75 V @ 20 mA |
| Maximum Output Current | 380 mA |
| Slew Rate | 7.0 V/µs (CL = 15 pF) |
| Input Offset Voltage | 20 mV (0 V ≤ VIN ≤ 5 V) |
| ESD Rating (Human Body Model) | 3.5 kV for ADD8505 |
Source: Analog Devices ADD8504/ADD8505/ADD8506 LCD Gamma Buffers Datasheet
All Analog Devices ADD8504 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the ADD8504 support?
The ADD8504 operates from 3.3 V to 6.5 V.
From: Analog Devices ADD8504/ADD8505/ADD8506 LCD Gamma Buffers Datasheet
What is the maximum output current per channel?
Each channel can source up to 380 mA.
From: Analog Devices ADD8504/ADD8505/ADD8506 LCD Gamma Buffers Datasheet
What supply voltage range do the ADD8504/5/6 devices operate over?
They operate from 3.3 V up to 6.5 V.
How many channels does the ADD8504 have?
The ADD8504 provides four independent buffer channels.
