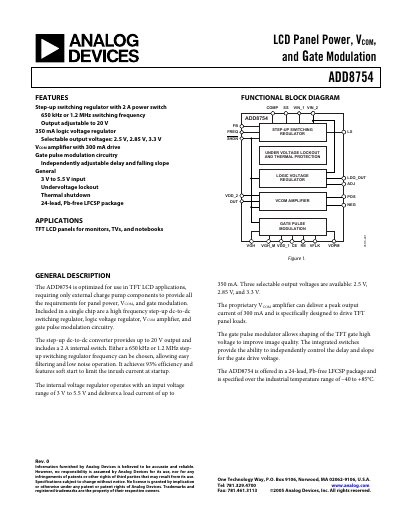

Analog Devices ADD8754 LCD Panel Power, V COM, and Gate Modulation IC Datasheet
The ADD8754 is an integrated circuit designed for TFT LCD panel power, VCOM and gate modulation. It combines a high‑frequency step‑up switching regulator, a low‑dropout regulator, a VCOM amplifier and a gate‑pulse‑modulator in a 24‑lead LFCSP package.
The document provides full electrical specifications, pin descriptions, typical performance curves, layout guidelines, mechanical dimensions and ordering information, along with a theory of operation and application circuit examples.
Analog Devices ADD8754 specifications
| Input Voltage Range (VIN) | 3.0 V – 5.5 V |
|---|---|
| Output Voltage Range (VOUT1) | up to 20 V |
| LDO Output Voltage Options | 2.5 V, 2.85 V, 3.3 V |
| Gate Pulse Modulator Voltage Range (VGH) | 7 V – 30 V |
Source: Analog Devices ADD8754 LCD Panel Power, V COM, and Gate Modulation IC Datasheet
All Analog Devices ADD8754 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range for the ADD8754?
The device operates with an input voltage between 3.0 V and 5.5 V.
From: Analog Devices ADD8754 LCD Panel Power, V COM, and Gate Modulation IC Datasheet
What output voltages can the LDO regulator be set to?
The LDO can be configured for 2.5 V, 2.85 V, or 3.3 V output.
From: Analog Devices ADD8754 LCD Panel Power, V COM, and Gate Modulation IC Datasheet
What is the input voltage range of the ADD8754?
The device operates with an input voltage from 3.0 V to 5.5 V.
What is the maximum output voltage the regulator can provide?
The step‑up regulator can deliver up to 20 V output.
