Start here

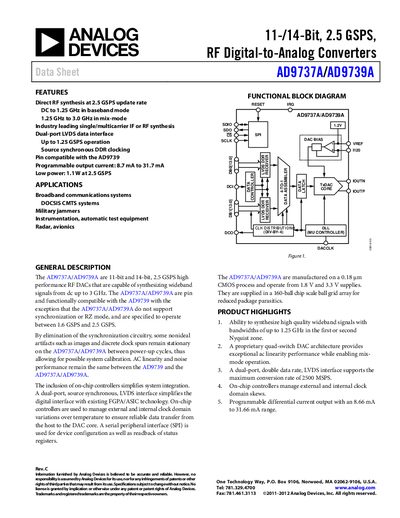

Analog Devices AD9737A/AD9739A RF DAC Datasheet
The AD9737A and AD9739A are high‑performance 11‑bit and 14‑bit RF digital‑to‑analog converters capable of up to 2.5 GSPS conversion rates. They provide direct RF synthesis, dual‑port LVDS data interfaces, and programmable output currents, making them suitable for broadband communications, DOCSIS CMTS, military jammers, test equipment, radar, and avionics.
The datasheet includes detailed electrical specifications, pin configurations, LVDS and serial port parameters, absolute maximum ratings, and ordering information. It also outlines functional block diagrams, revision history, and thermal characteristics to aid system designers in integration and calibration.
Analog Devices AD9739A specifications
| Resolution | 11 bits (AD9737A) / 14 bits (AD9739A) |
|---|---|
| Full‑Scale Output Current | 8.66 mA – 31.66 mA |
| Clock Rate | 1.6 GSPS – 2.5 GSPS |
| Power Dissipation (2.0 GSPS) | 0.770 W |
All Analog Devices AD9739A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum conversion rate of the AD9737A/AD9739A?
The device supports a maximum conversion rate of 2.5 GSPS (2500 MSPS).
What supply voltages are required for operation?
The DAC operates from VDDA = VDD33 = 3.3 V and VDDC = VDD = 1.8 V.
What is the maximum update (conversion) rate of the AD9739A?
The device supports a DAC clock rate up to 2.5 GHz (2.5 GSPS).
What output current range can be programmed on the AD9739A?
The programmable differential output current ranges from 8.66 mA to 31.66 mA.
