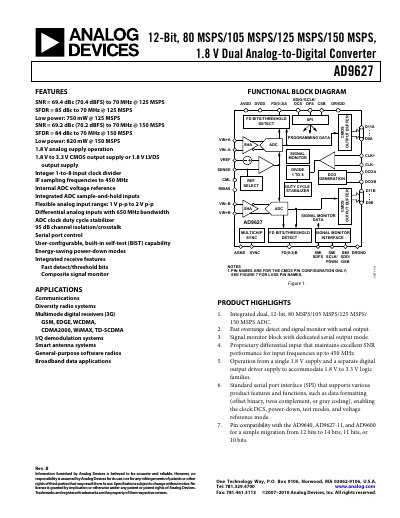

Analog Devices AD9627 12‑Bit Dual‑Channel ADC Datasheet Rev B
The AD9627 is a dual, 12‑bit analog‑to‑digital converter that supports sample rates of 80 MSPS, 105 MSPS, 125 MSPS and 150 MSPS from a single 1.8 V supply. It features a differential pipelined architecture, integrated voltage reference, fast‑detect over‑range detection, and a programmable signal‑monitor block.
The device is supplied in a 64‑lead LFCSP package and operates over an industrial temperature range (‑40 °C to +85 °C). It provides both CMOS (1.8 V–3.3 V) and LVDS output options, and can be configured via a 3‑bit SPI‑compatible serial interface. Power‑down modes enable significant energy savings when the ADC is idle.
Analog Devices AD9627 specifications
| Resolution | 12 bits |
|---|---|
| Maximum Sample Rate | 150 MSPS |
| Supply Voltage (AVDD/DVDD) | 1.8 V |
| Output Supply (DRVDD) CMOS | 3.3 V |
| Signal‑to‑Noise Ratio (70 MHz, 125 MSPS) | 69.4 dBc |
| Input Bandwidth | 650 MHz |
Source: Analog Devices AD9627 12‑Bit Dual‑Channel ADC Datasheet Rev B
All Analog Devices AD9627 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD9627?
The AD9627 supports up to 150 MSPS depending on the device variant.
From: Analog Devices AD9627 12‑Bit Dual‑Channel ADC Datasheet Rev B
What is the input bandwidth of the AD9627?
The analog input bandwidth is specified as 650 MHz.
From: Analog Devices AD9627 12‑Bit Dual‑Channel ADC Datasheet Rev B
What is the maximum sample rate of the AD9627?
The AD9627 supports up to 150 MSPS.
What is the typical power consumption at 125 MSPS?
DC input power is about 750 mW at 125 MSPS.
