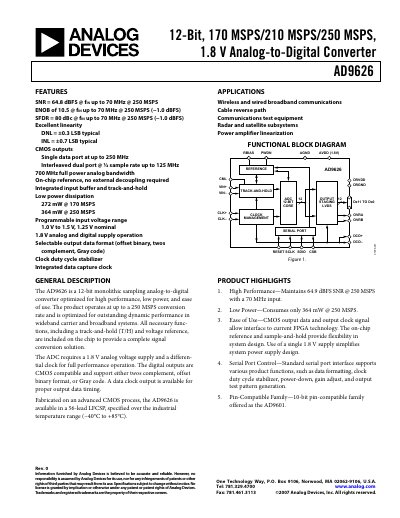

Analog Devices AD9626 12‑Bit ADC Datasheet Rev 0
Datasheet 36 pages · 1.5 MB · EN
The AD9626 is a monolithic 12‑bit sampling ADC optimized for high performance, low power, and ease of use. It operates from a single 1.8 V supply and provides CMOS‑compatible digital outputs in offset binary, two's complement, or Gray code.
The device includes an on‑chip reference, track‑and‑hold, and a serial port for configuration. It is offered in a 56‑lead LFCSP package and qualified for industrial temperature range (‑40 °C to +85 °C).
Analog Devices AD9626 specifications
| Resolution | 12 bits |
|---|---|
| Signal‑to‑Noise Ratio (SNR) | 64.8 dBFS @ 250 MSPS |
| Power Dissipation | 364 mW @ 250 MSPS |
| Programmable Input Voltage Range | 1.0 V to 1.5 V |
| Operating Temperature Range | -40 °C to +85 °C |
Source: Analog Devices AD9626 Datasheet
All Analog Devices AD9626 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum conversion (sampling) rate of the AD9626?
The AD9626 can operate up to 250 MSPS.
What supply voltages are required for the AD9626?
The device requires 1.8 V for both AVDD and DRVDD supplies.
