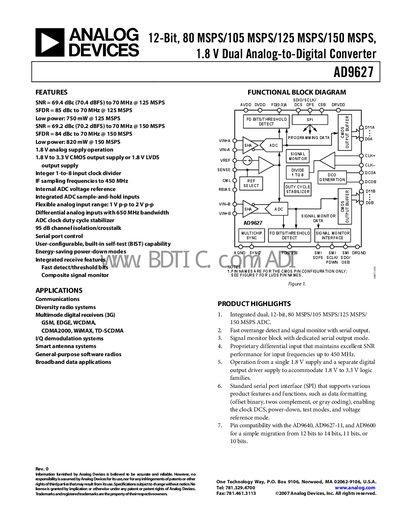

This is a 12-bit 80Msps/105Msps/125Msps/150Msps 1.8V dual analog-to-digital converter
The AD9627 is a dual, 12‑bit analog‑to‑digital converter available in 80 MSPS, 105 MSPS, 125 MSPS and 150 MSPS versions. It operates from a single 1.8 V supply with optional 1.8 V‑3.3 V CMOS or 1.8 V LVDS output drivers and includes fast over‑range detection, a programmable threshold detector and a signal‑monitor block.
The device is supplied in a 64‑lead LFCSP package and is specified for an industrial temperature range of –40 °C to +85 °C. Detailed electrical specifications, pin configurations, functional block diagrams and design guidelines are provided for system integration.
| Maximum Sample Rate | 150 MSPS |
|---|---|
| Analog Input Bandwidth | 650 MHz |
| DC Input Power Consumption (125 MSPS) | 750 mW |
The AD9627 supports up to 150 MSPS.
DC input power is about 750 mW at 125 MSPS.
The analog input bandwidth is 650 MHz.
