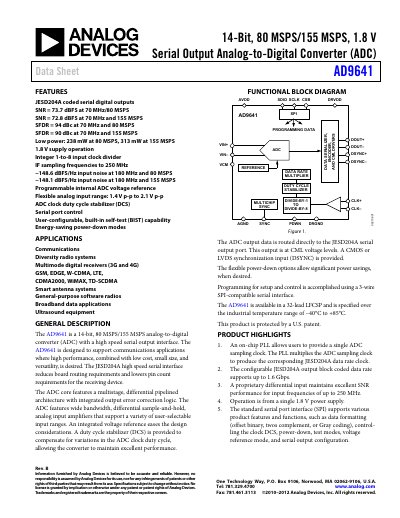

Analog Devices AD9641 14‑Bit 80/155 MSPS ADC Data Sheet
The AD9641 is a high‑speed 14‑bit ADC designed for communications and software‑defined radio applications. It offers a single‑ended 1.8 V supply, JESD204A high‑speed serial output, and built‑in self‑test capabilities. The device is available in a 32‑lead LFCSP package and operates over an industrial temperature range of –40 °C to +85 °C.
Key features include an on‑chip PLL for clock multiplication, configurable input ranges, low power operation (238 mW at 80 MSPS), and a flexible SPI‑compatible serial interface for configuration and control. The datasheet provides detailed electrical specifications, timing diagrams, and pin descriptions for designers.
Analog Devices AD9641 specifications
| Resolution | 14 bits |
|---|---|
| Supply Voltage (AVDD/DRVDD) | 1.8 V (typical) |
| Signal‑to‑Noise Ratio (70 MHz, 80 MSPS) | 73.7 dBFS |
| Maximum Clock Input Rate | 640 MHz |
| Data Rate (NRZ) | 1.6 Gbps (80 MSPS) – 3.1 Gbps (155 MSPS) |
| Operating Temperature Range | –40 °C to +85 °C |
Source: Analog Devices AD9641 14‑Bit 80/155 MSPS ADC Data Sheet
All Analog Devices AD9641 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the AD9641 require?
The AD9641 operates from a single 1.8 V supply for both analog and digital power rails.
From: Analog Devices AD9641 14‑Bit 80/155 MSPS ADC Data Sheet
Which serial interface does the AD9641 use for data output?
It uses a JESD204A high‑speed serial output interface.
From: Analog Devices AD9641 14‑Bit 80/155 MSPS ADC Data Sheet
What is the maximum sample rate of the AD9641?
The AD9641 can sample up to 155 MSPS.
What supply voltage does the AD9641 require?
Both analog (AVDD) and digital (DRVDD) supplies are 1.8 V.
