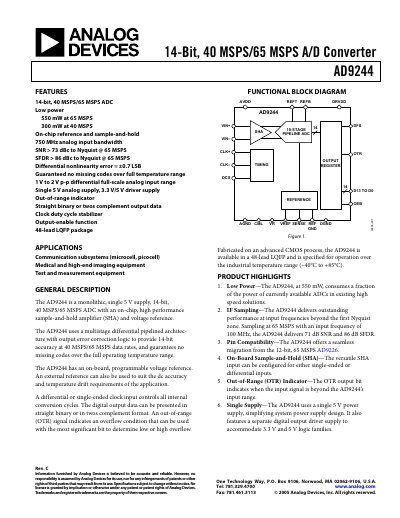

Analog Devices AD9244 A/D Converter Datasheet
The AD9244 is a monolithic, single‑supply 14‑bit ADC capable of 40 MSPS or 65 MSPS operation. It features an on‑chip sample‑and‑hold amplifier, internal voltage reference, and supports both straight‑binary and two's‑complement output formats. The device is supplied by a 5 V analog rail and a separate 3.3 V/5 V digital driver rail.
The datasheet provides detailed specifications, pin configurations, functional block diagrams, and typical application circuits. It also includes absolute maximum ratings, switching specifications, and an evaluation board bill of materials for system designers.
Analog Devices AD9244 specifications
| Resolution | 14-bit |
|---|---|
| Power consumption at 65 MSPS | 550 mW |
| Analog input bandwidth | 750 MHz |
| Analog supply voltage (AVDD) | 5 V |
| Maximum conversion rate | 65 MHz |
All Analog Devices AD9244 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the power consumption of the AD9244 at 65 MSPS?
The device consumes 550 mW when operating at 65 MSPS.
What is the analog input bandwidth of the AD9244?
The analog input bandwidth is specified as 750 MHz.
What supply voltages does the AD9244 require?
It uses a single 5 V analog supply (AVDD) and a separate 3 V digital driver supply (DRVDD).
Does the AD9244 include an on‑chip reference?
Yes, the device has an on‑chip programmable voltage reference.
