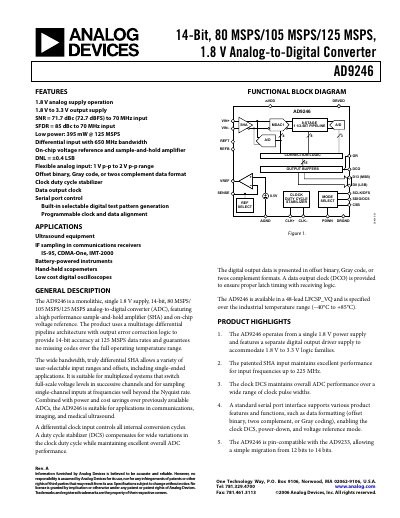

Analog Devices AD9246 14‑Bit 80‑125 MSPS ADC Datasheet
The AD9246 is a monolithic, single‑supply 14‑bit ADC offering up to 125 MSPS sampling rates. It features a high‑performance sample‑and‑hold amplifier, on‑chip voltage reference, and a differential pipeline architecture that guarantees no missing codes across the industrial temperature range.
The device is supplied in a 48‑lead LFCSP_VQ package and supports multiple data formats (offset binary, Gray code, two's complement) via a standard serial port interface. Detailed specifications cover DC, AC, digital, and switching performance, along with pin configurations, timing diagrams, and layout recommendations.
Analog Devices AD9246 specifications
| Resolution | 14 bits |
|---|---|
| Maximum Sampling Rate | 125 MSPS (DCS enabled) |
| Supply Voltage (Analog) | 1.8 V (typical) |
| Supply Voltage (Digital) | 1.8 V to 3.3 V |
| Input Bandwidth | 650 MHz |
| Package | 48‑lead LFCSP_VQ |
Source: Analog Devices AD9246 14‑Bit 80‑125 MSPS ADC Datasheet
All Analog Devices AD9246 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the AD9246 require?
The AD9246 operates from a single 1.8 V analog supply and a digital supply that can be 1.8 V to 3.3 V.
From: Analog Devices AD9246 14‑Bit 80‑125 MSPS ADC Datasheet
What is the maximum sampling rate of the AD9246?
When the duty‑cycle stabilizer is enabled, the AD9246 can sample up to 125 MSPS.
From: Analog Devices AD9246 14‑Bit 80‑125 MSPS ADC Datasheet
