Start here

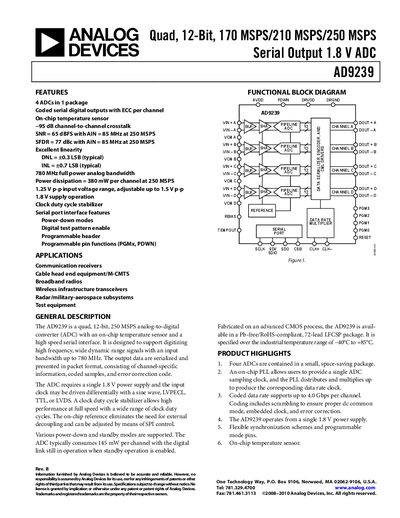

Analog Devices AD9239 ADC Product Handbook
The AD9239 is a quad, 12‑bit, high‑speed analog‑to‑digital converter designed for digitizing wide‑bandwidth signals up to 780 MHz. It operates from a single 1.8 V supply and includes an on‑chip temperature sensor, PLL, and serial output interface.
The handbook contains detailed functional block diagrams, electrical specifications, timing diagrams, and application guidance for communication receivers, radar, test equipment, and other high‑frequency systems.
Analog Devices AD9239 specifications
| Resolution | 12 Bits |
|---|---|
| Maximum Sample Rate | 250 MSPS |
| Analog Bandwidth (Full Power) | 780 MHz |
| Typical Power Dissipation (250 MSPS) | 1.526 W |
| Channel‑to‑Channel Crosstalk | -95 dB |
| Power‑Down Dissipation | 3 mW |
All Analog Devices AD9239 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the AD9239 require?
The device operates from a single 1.8 V supply for both AVDD and DRVDD.
What is the maximum analog bandwidth of the AD9239?
The AD9239 provides a full‑power analog bandwidth of 780 MHz.
How many ADCs are integrated in the AD9239 package?
Four ADCs are contained in one package.
Does the AD9239 include an on‑chip temperature sensor?
Yes, the device includes an on‑chip temperature sensor.
