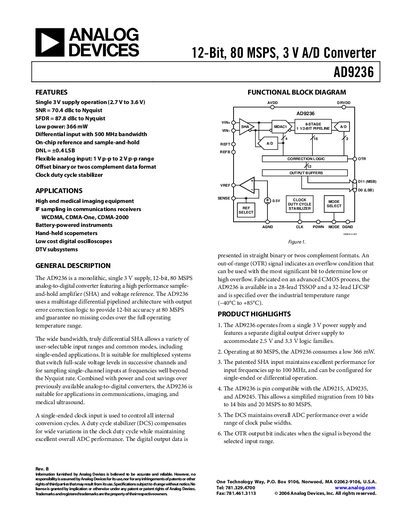

Analog Devices AD9236 Datasheet
The AD9236 is a monolithic 12‑bit ADC that operates from a single 3 V supply and delivers 80 MSPS sampling rate. It features a differential input with up to 2 V p‑p range, on‑chip reference, and a clock duty‑cycle stabilizer for robust performance.
The device is offered in 28‑lead TSSOP and 32‑lead LFCSP packages and is specified for industrial temperature range (‑40 °C to +85 °C). It is suited for medical imaging, communications receivers, battery‑powered instruments, and low‑cost oscilloscopes.
Analog Devices AD9236 specifications
| Resolution | 12 bits |
|---|---|
| Maximum Sample Rate | 80 MSPS |
| Supply Voltage (AVDD) | 2.7 V to 3.6 V |
| Supply Voltage (DRVDD) | 2.25 V to 3.6 V |
| Power Consumption (Low Frequency Input) | 366 mW |
| Input Span (Differential) | 2 V p‑p |
| Input Capacitance | 7 pF |
| Operating Temperature Range | -40 °C to +85 °C |
Source: Analog Devices AD9236 Datasheet
All Analog Devices AD9236 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for AVDD?
AVDD can be supplied between 2.7 V and 3.6 V.
What is the maximum conversion (sampling) rate of the AD9236?
The AD9236 supports up to 80 MSPS conversion rate.
How much power does the AD9236 consume at 80 MSPS?
At its maximum conversion rate of 80 MSPS the AD9236 consumes 366 mW.
What is the analog input bandwidth of the AD9236?
The differential input bandwidth is specified up to 500 MHz.
