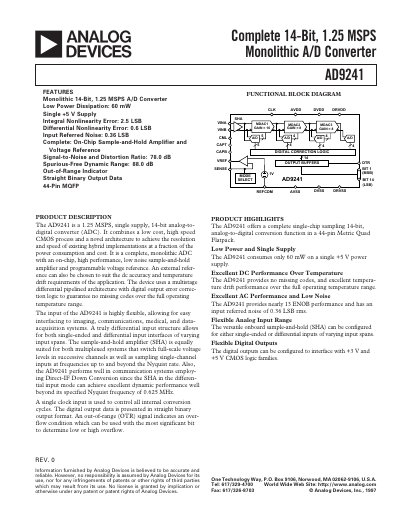

Analog Devices AD9241 Datasheet
The AD9241 is a 14‑bit, 1.25 MSPS monolithic analog‑to‑digital converter offered by Analog Devices. It operates from a single +5 V supply and delivers low power dissipation (≈60 mW) while providing excellent DC and AC performance, including 0.36 LSB rms input‑referred noise and a spurious‑free dynamic range of 88 dB.
The datasheet details the functional block diagram, pin assignments, absolute maximum ratings, electrical specifications, and typical performance curves. It also describes the flexible analog input architecture, which supports both single‑ended and differential configurations with programmable reference voltages.
Analog Devices AD9241 specifications
| Resolution | 14 bits |
|---|---|
| Maximum conversion rate | 1.25 MSPS |
| Input‑referred noise (VREF = 2.5 V) | 0.36 LSB rms (typ) |
| Power consumption | 65 mW typ, 85 mW max |
| Supply voltage | +5 V (±5 %) |
| Input span (VREF = 2.5 V) | 5 V p‑p max |
| Output voltage (1 V mode) | 1 V typ |
| Missing codes | No missing codes guaranteed to 14‑bit |
Source: Analog Devices AD9241 Datasheet
All Analog Devices AD9241 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD9241?
The AD9241 can sample at up to 1.25 MSPS.
How much power does the AD9241 consume?
Typical power consumption is 65 mW, with a maximum of 85 mW.
What supply voltage does the AD9241 require?
The AD9241 operates from a single +5 V supply for AVDD, DVDD and DRVDD.
What is the typical power consumption of the AD9241?
Typical power consumption is 65 mW (maximum 85 mW).
