AD9241 is a 14-bit, 1.25 MSPS monolithic A/D converter with low power consumption, single +5V supply, less than 2.5 LSB integral nonlinearity error and less than 0.6 LSB differential nonlinearity error.

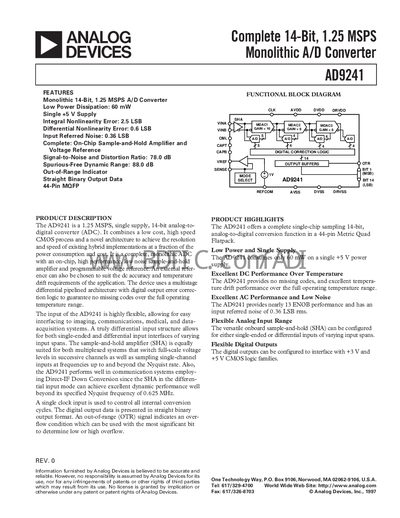

The AD9241 is a monolithic 14‑bit, 1.25 MSPS analog‑to‑digital converter that operates from a single +5 V supply. It integrates a sample‑and‑hold amplifier, voltage reference, and digital correction logic to provide no missing codes and excellent linearity across temperature.
The device offers flexible input configurations, both single‑ended and differential, and programmable digital output levels for 3 V or 5 V CMOS logic families. Key performance figures include 78 dB SINAD, 88 dB SFDR, and a typical power consumption of 65 mW.
| Resolution | 14 bits |
|---|---|
| Maximum conversion rate | 1.25 MHz |
| Supply voltage | +5 V (single supply) |
| Power consumption | 65 mW typ (85 mW max) |
| Supply current (AVDD) | 13.0 mA max |
The AD9241 operates from a single +5 V supply for AVDD, DVDD and DRVDD.
Typical power consumption is 65 mW (maximum 85 mW).
