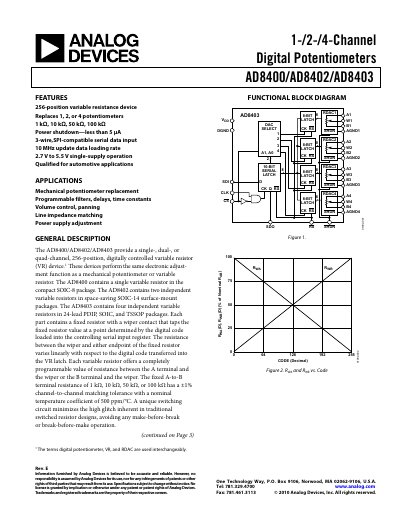

Analog Devices AD8400/AD8402/AD8403 Digital Potentiometer Datasheet
The AD8400 family provides single‑, dual‑, or quad‑channel digital potentiometers in 256‑position steps. Available resistance values are 1 kΩ, 10 kΩ, 50 kΩ, and 100 kΩ, and the devices are offered in SOIC‑8, SOIC‑14, PDIP, and TSSOP packages for space‑constrained designs. They feature a 3‑wire SPI‑compatible serial interface, low‑power shutdown (<5 µA), and are qualified for automotive temperature ranges (‑40 °C to +125 °C).
The datasheet details electrical characteristics for each resistance version, including supply voltage range (2.7 V–5.5 V), 8‑bit resolution, bandwidth up to 600 kHz, and timing diagrams for serial communication. Ordering information, pin configurations, and application examples such as mechanical potentiometer replacement and programmable filters are also provided.
Analog Devices AD8400 specifications
| Resolution | 8 bits |
|---|---|
| Nominal Resistance Options | 1 kΩ, 10 kΩ, 50 kΩ, 100 kΩ |
| Power Supply Range | 2.7 V to 5.5 V (single‑supply) |
Source: Analog Devices AD8400/AD8402/AD8403 Digital Potentiometer Handbook
All Analog Devices AD8400 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many bits of resolution are provided?
Each device provides 8‑bit (256‑position) resolution.
From: Analog Devices AD8400/AD8402/AD8403 Digital Potentiometer Handbook
What temperature range can the AD8400/AD8402/AD8403 operate in?
They are guaranteed to operate from –40 °C to +125 °C.
From: Analog Devices AD8400/AD8402/AD8403 Digital Potentiometer Handbook
