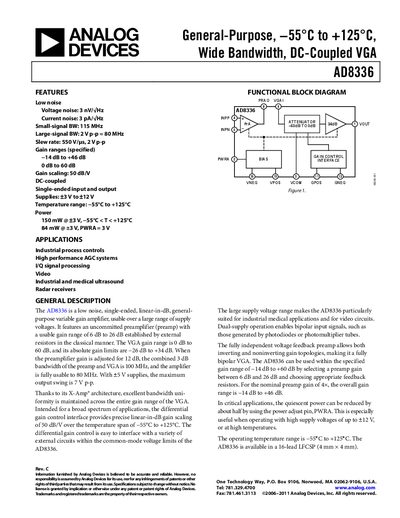

Analog Devices AD8336 Variable Gain Amplifier Datasheet
The AD8336 is a general‑purpose, low‑noise variable gain amplifier (VGA) that operates from –55 °C to +125 °C. It offers a gain range of –14 dB to +46 dB (up to 60 dB with preamplifier) and a linear‑in‑dB gain scaling of 50 dB/V. The device supports single‑ended input and output, dual‑supply operation (+3 V to +12 V), and includes a power‑adjust pin for reduced quiescent consumption.
Key features include a small‑signal bandwidth of 115 MHz, large‑signal bandwidth of 80 MHz, a slew rate of 550 V/µs, and low voltage and current noise (3 nV/√Hz, 3 pA/√Hz). The AD8336 is supplied in a 16‑lead LFCSP package and is suited for industrial process control, high‑performance AGC, ultrasound, radar, and video applications.
Analog Devices AD8336 specifications
| Voltage noise | 3 nV/VHz |
|---|---|
| Current noise | 3 pA/VHz |
| Gain range (typical) | –14 dB to +46 dB |
| Supply voltage range | +3 V to +12 V |
| Power dissipation @ +5 V | 260 mW |
| Slew rate | 550 V/µs |
Source: Analog Devices AD8336 Variable Gain Amplifier Datasheet
All Analog Devices AD8336 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the AD8336?
The AD8336 operates from +3 V to +12 V.
From: Analog Devices AD8336 Variable Gain Amplifier Datasheet
How much power does the AD8336 dissipate at a +5 V supply?
It dissipates 260 mW when powered at +5 V.
From: Analog Devices AD8336 Variable Gain Amplifier Datasheet
