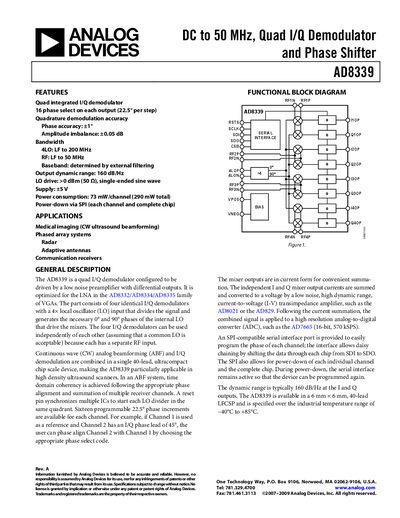

Analog Devices AD8339 Quad I/Q Demodulator Datasheet
The AD8339 is a quad I/Q demodulator with integrated phase‑shifter. It provides 16 selectable 22.5° phase steps per channel, 160 dB/Hz dynamic range, and operates from a single +5 V supply while consuming 73 mW per channel. The device includes an SPI‑compatible serial interface for programming and power‑down control.
Typical applications include medical imaging (ultrasound beamforming), phased‑array radar, adaptive antennas, and communication receivers. The part is offered in a 6 mm × 6 mm, 40‑lead LFCSP package and is rated for –40 °C to +85 °C operation.
Analog Devices AD8339 specifications
| Supply Voltage (Vs) | +4.5 V to +5.5 V |
|---|---|
| Operating Temperature Range | –40 °C to +85 °C |
| RF Frequency Range | DC to 50 MHz |
| Dynamic Range | 160 dB/Hz |
| Phase Increment Steps | 16 steps of 22.5° per channel |
| Power Consumption | 73 mW per channel (290 mW total) |
Source: Analog Devices AD8339 Quad I/Q Demodulator Datasheet
