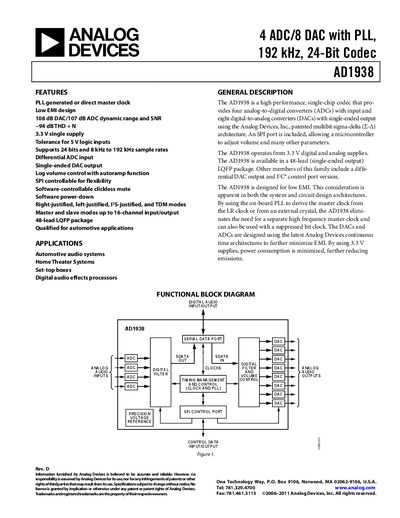

ANALOG DEVICES 4 ADC/8 DAC with PLL 192 kHz 24-Bit Codec AD1938 English products handbook Rev D
The AD1938 is a high‑performance single‑chip audio codec that provides four analog‑to‑digital converters and eight digital‑to‑analog converters in a 48‑lead LOFP package. It operates from a 3.3 V supply and includes an on‑board PLL for master‑clock generation, supporting sample rates from 8 kHz to 192 kHz.
Key features include low EMI design, 108 dB DAC and 107 dB ADC dynamic range, software‑controllable volume with click‑less mute, SPI‑based control, and qualification for automotive applications. Typical applications are automotive audio systems, home theater, set‑top boxes, and digital audio effects processors.
Analog Devices AD1938 specifications
| Supply voltages (AVDD, DVDD) | 3.3 V |
|---|---|
| ADC Resolution | 24 Bits |
| ADC Dynamic Range | 98‑102 dB |
| Volume Control Range | 95 dB |
| Power‑Down Current (48 kHz‑192 kHz) | 2.0 mA |
Source: ANALOG DEVICES 4 ADC/8 DAC with PLL 192 kHz 24-Bit Codec AD1938 English products handbook Rev D
All Analog Devices AD1938 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the AD1938 require?
The AD1938 operates from 3.3 V analog and digital supplies (AVDD and DVDD).
From: ANALOG DEVICES 4 ADC/8 DAC with PLL 192 kHz 24-Bit Codec AD1938 English products handbook Rev D
What is the ADC resolution of the AD1938?
All ADCs in the AD1938 have a 24‑bit resolution.
From: ANALOG DEVICES 4 ADC/8 DAC with PLL 192 kHz 24-Bit Codec AD1938 English products handbook Rev D
What supply voltage does the AD1938 require?
The AD1938 operates from a 3.3 V digital and analog supply.
What is the maximum operating temperature for the AD1938?
It is functionally guaranteed from –40 °C up to +125 °C case temperature.
