Start here

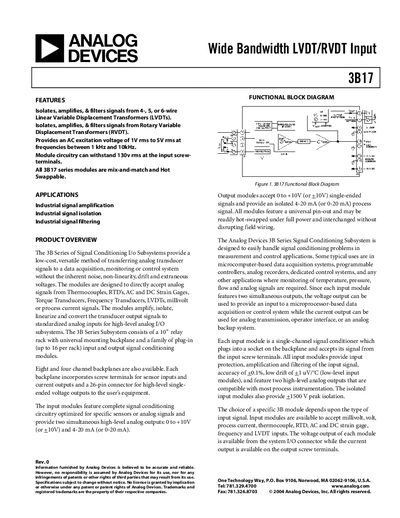

Analog Devices 3B17 Handbook
The 3B17 is a wide‑bandwidth single‑channel signal‑conditioning module that isolates, amplifies, and filters signals from 4‑, 5‑, or 6‑wire Linear Variable Displacement Transformers (LVDTs) and Rotary Variable Displacement Transformers (RVDTs). It provides an AC excitation voltage of 1 V rms to 5 V rms over a frequency range of 1 kHz to 10 kHz and offers dual high‑level analog outputs (voltage and current).
The module is hot‑swappable, mix‑and‑match compatible with other 3B series modules, and includes input protection up to 130 V rms, +1500 V peak isolation, and accuracy of ±0.1 % of span. Mechanical dimensions are 3.15" × 3.395" × 0.775" and it operates from –28 °C to +85 °C.
Analog Devices 3B17 specifications
| Excitation Voltage | 1 V rms to 5 V rms |
|---|---|
| Excitation Frequency | 1 kHz to 10 kHz |
| Output Voltage Range | -10 V to +10 V |
| Output Current Range | 4 mA to 20 mA |
| Accuracy (Span) | ±0.1 % Span |
| Temperature Range | -28 °C to +85 °C |
| Mechanical Dimensions | 3.15" × 3.395" × 0.775" |
| Input Protection | 130 V rms maximum |
| Isolation Rating | +1500 V peak isolation |
| Hot‑Swap Capability | Mix‑and‑match and Hot Swappable |
Source: Analog Devices 3B17 Handbook
All Analog Devices 3B17 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What types of transducers does the 3B17 module support?
It isolates, amplifies, and filters signals from 4‑, 5‑, or 6‑wire Linear Variable Displacement Transformers (LVDTs) and Rotary Variable Displacement Transformers (RVDTs).
Can the 3B17 module be hot‑swapped?
Yes, all 3B17 series modules are mix‑and‑match and Hot Swappable, allowing insertion or removal without disrupting system power.
What is the AC excitation voltage range of the 3B17?
The module provides an AC excitation voltage from 1 V rms to 5 V rms.
From: Analog Devices 3B17 Signal Conditioning Module Datasheet
What input protection does the 3B17 offer?
The input and excitation terminals are protected for up to 130 V rms continuous.
From: Analog Devices 3B17 Signal Conditioning Module Datasheet
