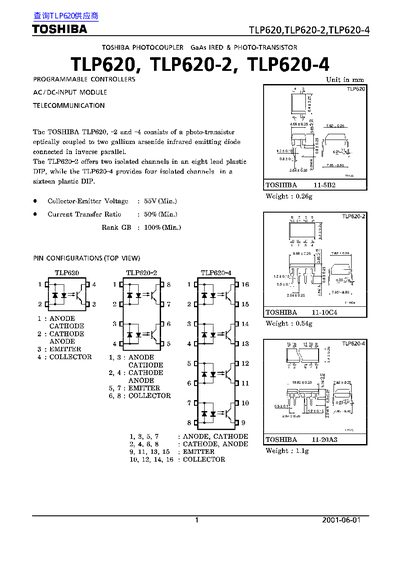

Toshiba TLP620/TLP620-2/TLP620-4 Photocoupler Datasheet
This document provides technical specifications for the Toshiba TLP620, TLP620-2, and TLP620-4 series of photocouplers. These devices consist of a photo-transistor optically coupled to two gallium arsenide infrared emitting diodes connected in inverse parallel. The TLP620-2 offers two isolated channels in an eight-lead plastic DIP, while the TLP620-4 provides four isolated channels in a sixteen-lead plastic DIP.
Read onlineToshiba TLP620 specifications
| Collector-Emitter Voltage | 55V (Min.) |
|---|---|
| Forward Current If (RMS) | 60 mA |
| Junction Temperature | 125 °C |
| Operating Temperature Range | -55~100 °C |
| Current Transfer Ratio | 100 ~ 600 % |
Source: Toshiba TLP620/TLP620-2/TLP620-4 Photocoupler Datasheet
All Toshiba TLP620 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the pin configurations for the TLP620-4?
Pins 1, 3, 5, 7 are Anode/Cathode; 2, 4, 6, 8 are Cathode/Anode; 9, 11, 13, 15 are Emitter; 10, 12, 14, 16 are Collector.
From: Toshiba TLP620/TLP620-2/TLP620-4 Photocoupler Datasheet
What is the maximum operating temperature range?
The operating temperature range is from -55°C to 100°C.
From: Toshiba TLP620/TLP620-2/TLP620-4 Photocoupler Datasheet
What is the minimum isolation voltage rating of the TLP620 series?
The datasheet specifies a minimum isolation voltage of 5000 Vrms.
What is the recommended operating temperature range?
The recommended operating temperature is from –25 °C to 85 °C.
